"Edirol UA-25EX USB Audio Recording Interface"



A Professional Quality Studio Tool with Multi-Functionality.

Rugged, compact, and feature-filled, the UA-25EX USB Audio Capture is a portable powerhouse. Ideal for computer-based audio engineers who want mobility, this 24bit/96kHz USB interface is equipped with pro-grade microphone preamps, an analog compressor/limiter, and ground-lift functionality for studio and stage.

High-Resolution Performance
Don't let its compact size (or body) fool you — the UA-25EX is a full-featured, professional audio interface with extras you wouldn't expect from its size nor price range. It's capable of handling audio at 24bit/96kHz resolution, and boasts high-end mic preamps, plus pro quality balanced audio inputs and outputs, and an integrated low-noise, wide-range power supply.

Analog Compression & Limiting
The Edirol UA-25EX features an analog compressor with variable attack times and threshold control for smooth capture of vocals or dynamic instruments. The accompanying limiter prevents input clipping from occurring so you'll never lose those perfect takes.

Pro-Quality Shielding with Ground Lift
With its high-grade aluminum chassis, the UA-25EX can withstand hard impacts, and is shielded against high-frequency interference from other electrical components. Should a ground loop occur, the ground-lift function eliminates the noise by disconnecting the sleeve pin of the master output from the earth ground.

Bundled Software

Included with the Edirol UA-25EX is the Production Plus Pack from Cakewalk by Roland, a feature-rich recording software bundle consisting of SONAR LE, Project 5 LE, and Dimension LE for PC-based recording. The CD-ROM also includes the latest ASIO, WDM, and MME drivers for Windows XP and Vista (32-bit versions), plus Core Audio drivers for Mac OSX.

Edirol UA-25EX USB Audio Capture Recording Interface Specifications:

Edirol UA-25EX USB Audio Capture Recording Interface Features:

UA-25EX: 24Bit/96kHz Audio Capture

Mobile Connectivity with Pro-Studio Extras

Features

Rugged, compact, and feature-filled, the new UA-25EX is a portable-interface powerhouse. Ideal for computer-based audio engineers who appreciate mobility, this 24bit/96kHz USB audio interface is equipped with pro-grade microphone preamps, a newly-developed analog compressor/limiter, and ground-lift functionality for studio and stage.



UA-25EX: 24Bit/96kHz Audio Capture, Mobile Connectivity with Pro-Studio Extras



Features

Rugged, compact, and feature-filled, the new UA-25EX is a portable-interface powerhouse. Ideal for computer-based audio engineers who appreciate mobility, this 24bit/96kHz USB audio interface is equipped with pro-grade microphone preamps, a newly-developed analog compressor/limiter, and ground-lift functionality for studio and stage.

Mobile Connectivity with Pro-Studio Extras

High-Resolution Performance
Don’t let its compact size (or body) fool you — the UA-25EX is a full-featured, professional audio interface with extras you wouldn’t expect in its size and price class. It’s capable of handling audio at 24bit/96kHz resolution, and boasts newly-developed high-end mic preamps, plus proquality balanced audio inputs and outputs, and an integrated low-noise, wide-range power supply.

Analog Compression & Limiting
The UA-25EX features a newly-developed analog compressor with variable attack times and threshold control for smooth capture of vocals or dynamic instruments. The accompanying limiter prevents input clipping from occurring so you’ll never lose those perfect takes.

Pro-Quality Shielding with Ground Lift
With its high-grade aluminum chassis, the UA-25EX can withstand hard impacts, and is shielded against high-frequency interference from other electrical components. Should a ground loop occur, the new ground-lift function eliminates the noise by disconnecting the sleeve pin of the master output from the earth ground.

Bundled Software
Included with the UA-25EX is the Production Plus Pack from Cakewalk by Roland, a feature-rich recording software bundle consisting of SONAR LE, Project 5 LE, and Dimension LE for PC-based recording. The CD-ROM also includes the latest ASIO, WDM, and MME drivers for Windows XP and Vista (32-bit versions), plus CoreAudio drivers for Mac OSX.

Specs

Number of Audio Record/Playback Channels
Record
1 pair of stereo
Playback
1 pair of stereo
DIGITAL IN SWITCH = OFF: Full duplex (except for 96 kHz setting)
DIGITAL IN SWITCH = ON: Recording only
Signal Processing
PC interface
24 bits (ADVANCE SWITCH=OFF: 16 bits)
AD/DA Conversion
24 bits (linear)
Sampling Frequency
Digital output
44.1/48/96 kHz
Digital input
44.1/48/96 kHz
AD/DA Conversion
44.1/48/96 kHz
* ADVANCE SWITCH=OFF: 44.1 kHz only
Frequency Response
96.0 kHz
20 Hz to 40 kHz (+0 dB/-2 dB)
48.0 kHz
20 Hz to 22 kHz (+0 dB/-1 dB)
44.1 kHz
20 Hz to 20 kHz (+0 dB/-1 dB)
Nominal Input Level
Input Jack L, R (XLR type)
-60 to -20 dBu
Input Jack L, R (1/4 inch TRS phone type)
-36 to +4 dBu
* Maximum Input level: Nominal Input Level + 12 dB
Nominal Output Level
Output Jack L, R (1/4 inch TRS phone type)
+4 dBu (balanced)
Output Jack L, R (RCA phono type)
-2 dBu
* Maximum Output level: Nominal Output Level + 12 dB
Residual Noise Level
Output Jack
-96 dBu (S/N ratio: 105 dB) (input terminated with 1 k Ω, OUTPUT VOLUME: max., INPUT MONITOR: min., IHF-A, typ.)
Mic Preamp
PHANTOM POWER 48 V, ANALOG LIMITER/COMPRESSOR

Connectors

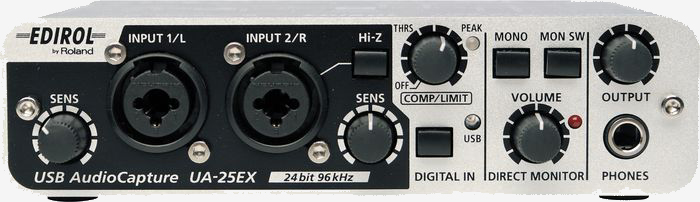

Front Panel
Input Jack L, R: XLR type (balanced, phantom power +48 V), 1/4 inch TRS phone type (balanced)
* Input Jack R: high impedance is supported
Headphone Jack: Stereo 1/4 inch phone type
Rear Panel
Digital Input Connector: Optical type
Digital Output Connector: Optical type
Output Jack L, R: 1/4 inch TRS phone type (balanced), RCA phono type
MIDI Connectors: IN/OUT
USB Connector: B type
Other
Power Supply
USB Bus Power
Current Draw
480 mA
Accessories
Owner's Manual
USB cable
CD-ROM
Size and Weight ( Size and Weight )
Width
164 mm
6-1/2 inches
Depth
133 mm
5-1/4 inches
Height
64 mm
2-9/16 inches
Weight
0.6 kg
1 lbs. 4 oz.
* 0 dBu = 0.775 Vrms



Edirol Debuts UA-25EX 2-Channel USB Audio/MIDI Interface June 26, 2008

EDIROL is pleased to announce the new EDIROL UA-25EX (http://www.rolandus.com/products/productdetails.aspx?ObjectId=970). Designed by Roland's DTMP engineering team, the UA-25EX offers premium sound quality, rugged durability, and complete portability for computer-based audio engineers.

Constructed with high-grade aluminum for the chassis, the EDIROL UA-25EX can withstand hard impacts and is shielded against high-frequency interference from other electrical components. A pair of Neutrik XLR/TRS combo jacks with 48V phantom power, Hi-Z port for guitar direct connection, S/PDIF optical I/O ports and MIDI IN/OUT ports round out the wide range of input and output ports in this compact case.

Advertisement

The EDIROL UA-25EX includes new professional features for the best-sounding recordings possible. The compressor includes variable attack times and threshold control for recording vocals or instruments, and the accompanying limiter prevents clipping noise from occurring. Should a ground loop noise occur, the new ground lift switch eliminates the noise by disconnecting the sleeve pin of the master output from the earth ground.

The bundled CD-ROM includes the latest WDM and ASIO 2.0 drivers for Windows XP and Vista (both 32-bit and 64-bit versions available), and CoreAudio (universal binary) drivers for Mac OSX. Another CD-ROM also comes with the UA-25EX, which includes Cakewalk's Production Plus Pack, a feature-rich recording software bundle consisting of SONAR LE, Project5 LE, and Dimension LE, to get musicians and producers started with PC-based recording.

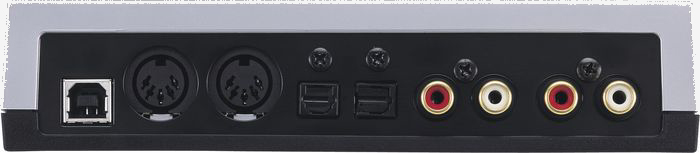

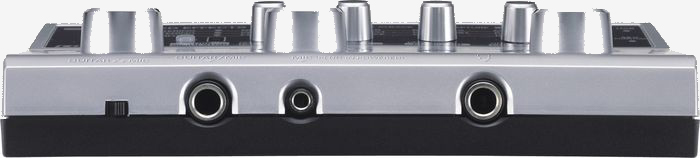

"Edirol Roland UA-4FX USB Audio-MIDI Interface"



UA-4FX: USB Audio/MIDI Interface

Make your computer a big-brained recorder, with killer effects.

The UA-4FX from Edirol is a USB audio/MIDI interface that sets a new standard for affordable connectivity. Gives you ultrafast, low-latency audio and MIDI performance, 24/96 audio resolution, phantom-powered XLR mic input, and built-in effects-including a COSM tube MIC preamp simulator for fattening up your tracks. The UA-4FX also includes a copy of Cakewalk's SONAR LE recording software and Edirol Virtual Sound Canvas plug-in (PC), making it a true all-in-one recording solution at an incredibly low price.

High-Quality Audio If you demand pristine performance, the UA-4FX interface can handle audio at up to 24-bit/96kHz resolution. Send audio in and out of the UA-4FX via its analog I/O or, for the ultimate in high-end audio quality, take advantage of its S/PDIF optical output. Windows XP users can use the optical output for Dolby Digital or DTS 5.1 Surround output as well.

Built-In Effects Great audio and versatile MIDI combined with a quality suite of built-in effects make the UA-4FX an irresistible package for computer-recording enthusiasts on a budget. Why pay extra for outboard or plug-in effects when the UA-4FX provides a quality, low-latency COSM tube mic-preamp simulator, multiband compressor/limiter for mastering, amp-simulator and distortion/chorus/delay for guitar, center cancel, reverb, noise suppressor, and more?

Cross-Platform Compatibility Good news for both Mac and PC users — the UA-4FX is cross-platform compatible. It supports WDM, ASIO 2.0, and Mac OS X Core Audio formats. Enjoy low-latency audio performance on both platforms! PC users are in for an extra treat: Edirol ships the UA-4FX with a complimentary copy of Cakewalk's SONAR LE multitrack recording software as well as Edirol's Virtual Sound Canvas plug-in.

Low-Latency MIDI Great audio is only part of what makes the UA-4FX a star performer. Connect your synths, modules, and controllers via MIDI, and enjoy ultrafast, stable performance thanks to Edirol's FPT (Fast Processing Transmission) technology. A single USB cable provides both the MIDI and audio links between your computer and the UA-4FX.

Portable Power
The UA-4FX receives its power via USB, which means no AC adapter is required. Great for musicians on the go!

Edirol UA-4FX USB Audio Capture Interface - Scratch 'n' Dent Features:

The Affordable All-In-One Mobile Recording Suite

Edirol's UA-series interfaces brought amazing value to computer-recording enthusiasts. Today, Edirol pushes the price/performance envelope again with the new UA-4FX. The portable USB audio/MIDI interface sets a new standard for affordable interfaces with its ultra-fast, low-latency audio and MIDI performance, 24/96 audio resolution, and built-in effects.

Route audio in and out of the UA-4FX via analog I/O or take advantage of its S/PDIF optical output. Windows XP users can use the optical output for Dolby Digital or DTS 5.1 Surround output as well. With built in COSM® tube mic-preamp simulator, multi-band compressor/limiter for mastering, amp simulator and distortion/chorus/delay for guitar, center cancel, reverb, noise suppressor and more, the Edirol UA-4FX is an irresistible package for computer-recording enthusiasts on a budget.

Great audio is only part of what makes the UA-4FX a star performer. Connect synths, modules, and controllers via MIDI, and enjoy ultra-fast, stable performance thanks to Edirol's FPT (Fast Processing Transmission) technology. A single USB cable provides both the MIDI and audio links between your computer and the UA-4FX.

The UA-4FX is Mac/PC cross-platform compatible. It supports WDM, ASIO 2.0, and Mac OS X Core Audio formats. Enjoy low-latency audio performance on both platforms.

Cakewalk's SONAR LE recording software and Edirol's Virtual Sound Canvas plug-in (PC) are bundled with the UA-4FX, making it a true all-in-one recording solution at an incredibly low price.

For more information, visit their web site at www.rolandus.com/edirol.

SONAR LE to Be Bundled with Edirol Audio Products

April 7, 2005A selection of Edirol USB Audio products will be shipping bundled with the newly released Cakewalk SONAR LE music and audio production software, starting in the second quarter of 2005. Edirol USB Audio products, such as the popular UA-25 as well as the newly released UA-101 (USB 2.0) audio interface and the PCR-M series of USB controllers, will soon benefit from value-added SONAR LE music production software, shipping right out of the box.

Advertisement

SONAR LE is modeled on SONAR 4, Cakewalk's flagship product, and provides a music production studio environment, offering powerful features such as 64-Audio/256-MIDI track editing, up to 24-bit/192 kHz resolution, and unique Direct X and VST plug-in software synthesizers and effects. For more details about SONAR LE visit www.cakewalk.com.



Spec Bulletins Downloads

Edirol Roland Audio Computer Interface Products, 2007-2008 (14 Pg).

UA-25EX, Edirol Roland UA-25EX Computer Audio Recording Interface Promo Literature (2 Pg),

UA-4FX, Edirol Roland UA-4FXComputer Audio Recording Interface Promo Literature (2 Pg).

Cakewalk Sonar LE, Audio Tutorial-Setup/Record/Playback

Roland-Edirol Virtual Synth, Using Roland Virtual Sound Canvas DXi
