Digital Interfaces | |
---|---|
Sample Rates |
96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz, Word Clock, AES, S/PDIF, ADAT |
Digital Inputs/Outputs |
2 Channels of AES/EBU, S/PDIF (Optical or Coaxial) or ADAT Lightpipe |
Analog Input (XLR) | |
---|---|
Impedance |
20 kOhms |
Full Scale Input Level |
26 dBu |
Dynamic Range |
>104 dB |
Signal to Noise Ratio |
>104 dB |
THD+N |
<0.003 @ 1 kHz, -3 dBFS |
Crosstalk |
<-100 dB @ 20 Hz to 20 kHz, - 1 dBFS |
Frequency Response: |
+0/-0.1 dB @ sample rate:
|
Analog Output (XLR) | |
---|---|
Impedance |
<50 Ohms |
Full Scale Input Level |
26 dBu |
Dynamic Range |
>108 dB |
Signal to Noise Ratio |
>108 dB |
THD+N |
<0.003 @ 1 kHz -3 dBFS |
Crosstalk |
<-100 dB @ 20 Hz to 20 kHz,-1 dBFS |
Frequency Response |
+0/-0.1dB @ sample rate:
|

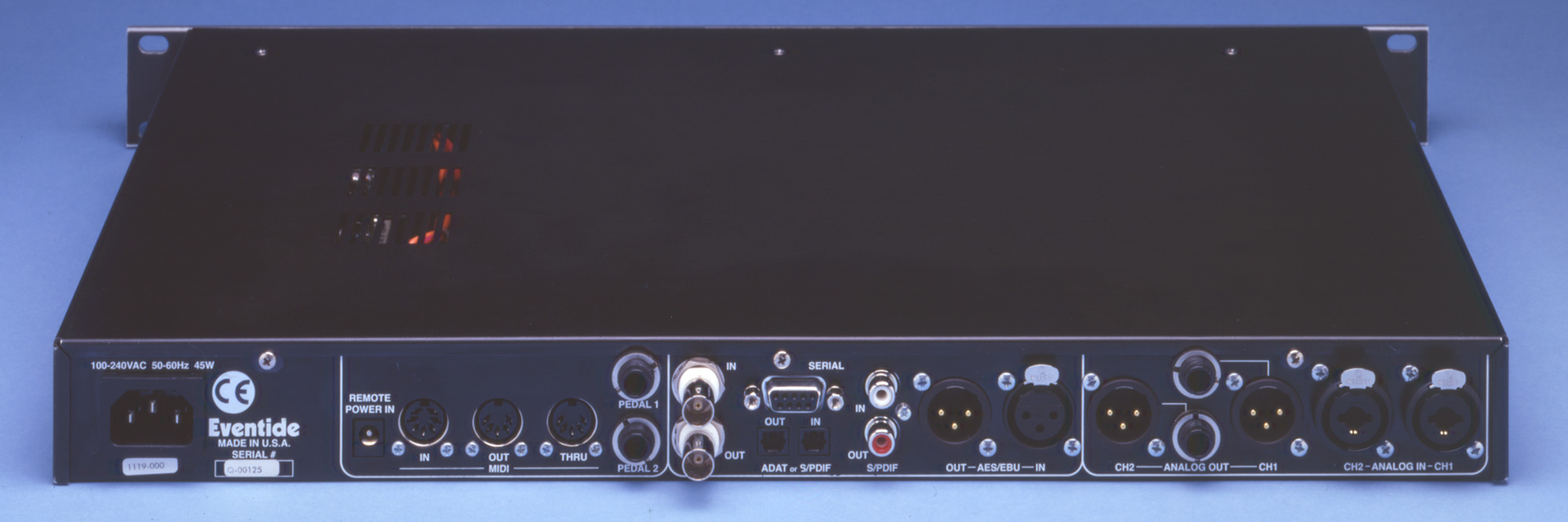

Other Connections | |
---|---|
Remote Control Inputs |
Up to 2 foot pedals (or 5V control inputs) or 6 foot switches or combination |
MIDI Connections |
5-pin DIN output and thru
|
Compact Flash Interface |
Supports Type I and Type II Compact Flash Cards for data storage |
Physical | |
---|---|
Power |
40 watts, 100-240 VAC, 50/60 Hz |
Size |
Inches: 1.75h x 19w x 10.5d
|
Weight |
9 pounds (4.1Kg) 12
|
