Keyboard
|
61 Standard-size keys
|
Tones
|
400 High-Quality Tones with New AHL Sound
Source
|
Polyphony
|
48-Note Polyphony
|
Digital Effects
|
10 Reverbs
|
Auto Accompaniment
|
Rhythm Patterns
|
150 Rhythms (Including 55 Ethnic Rhythms & 20 for piano
play)
|
Chords
|
5 fingering methods (CASIO CHORD, FINGERED 1, 2, 3, FULL RANGE)
|
Rhythm Controller
|
START/STOP, ACCOMP ON/OFF, INTRO, NORMAL/FILL-IN,
VARIATION/FILL-IN, SYNCHRO/ENDING
|

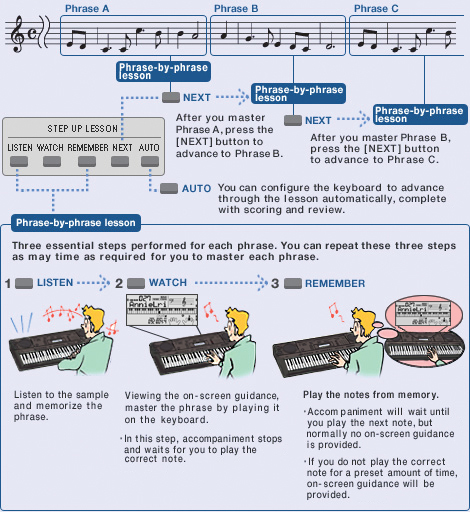

Step Lesson
|
3 lessons (Listen, Watch, Remember)
|
Playback
|
Repeat play by a phrase
|
Lesson Part
|
Left hand, right hand, both hands
|
Evaluation Mode
|
Repeat, voice finger guide, note guide, scoring
|
Voice Fingering Guide
|
On/Off
|
Song Bank
|
Number of Songs
|
110
|
Controllers
|
PLAY/STOP, PAST SELECT, REPEAT, REW, FF, PAUSE
|
Display
|
Name display
|
Alive, Tone, Rhythm, Song Bank, name/number, keyboard settings
name/value
|
Tempo
|
Tempo value, metronome, measure, beat number
|
Chord
|
Chord name
|
Fingering
|
Fingering indicators, parts
|
Staff
|
5 octaves with sharp and flat indications, octave symbol
|
Keyboard
|
5 octaves
|
Other Functions
|
Tempo
|
30 to 255
|
Transpose
|
+/-1 octaves (12 semitones)
|
Tuning
|
A4 = approximately 440Hz +/-100 cents
|
Terminals
|
USB Port
|
Type B
|
Sustain Terminal
|
Standard jack
|
Phones/Output Terminal
|
Standard jack (sustain, sostenuto, rhythm start/stop) Output
Impedance: 200Ω Output Voltage: 4.8V (RMS) MAX
|
Power Supply Terminal
|
9V DC, Negative Center Post, B+ Ring Sleeve
|
Audio in Jack
|
Stereo mini jack Input impedance: 40Ω Input sensitivity:
200mV
|
Power Supply
|
Dual Power Supply System
|
Batteries
|
6 AA-size Batteries
|
Battery Life
|
Approximately 4 hours Continuous Operation on Alkaline
Batteries
|
AC Adaptor
|
AD-5 (Optional)
|
Auto Power Off
|
Turns Power Off Approximately 6 minutes after Last Key Operation.
Enabled under Battery Power Only, can be disabled manually.
|
Speaker Output
|
2.0W + 2.0W
|
Power Consumption
|
9V - 7.7W
|
Dimensions
|
37 3/8 x 13 15/16 x 4 7/16 inch (94.9 x 35.4 x 11.2 cm)
|
Weight
|
Approximately 8.4 lbs (3.8kg) without Batteries
|
